Schedule 40 Pipe Weight Chart Calculate the weight of individual pipes and the entire pipeline made of carbon steel pipes Select the nominal pipe diameter from the available form The calculator shows the outside and inside diameter of the pipe for a standard pipe weight
Schedule 40 Pipe Weight Chart for ASME B36 10M DN NPS Outside Diameter Wall Thickness Plain End Mass Identificat ion Schedule No 250 10 273 0 10 750 9 27 0 365 60 29 40 52 STD 40 300 12 323 8 12 750 10 31 0 406 79 71 53 57 40 350 14 355 6 14 000 11 13 0 438 94 55 63 50 40 400 16 406 4 16 000 12 7 0 500 123 31 82 85 XS 40 Pipes schedule 40 chart dimensions weight and pipe wall thickness and Steel Metal Weight Calculator Pipes schedule 40 chart gives dimensions of steel pipes schedule 40 Chart includes sizes in inches and in millimeters
Schedule 40 Pipe Weight Chart
Schedule 40 Pipe Weight Chart
https://lakshyasteel.com/wp-content/uploads/2022/06/nominal-wall-thickness-schedule-40-pipe-lakshya-steel.gif

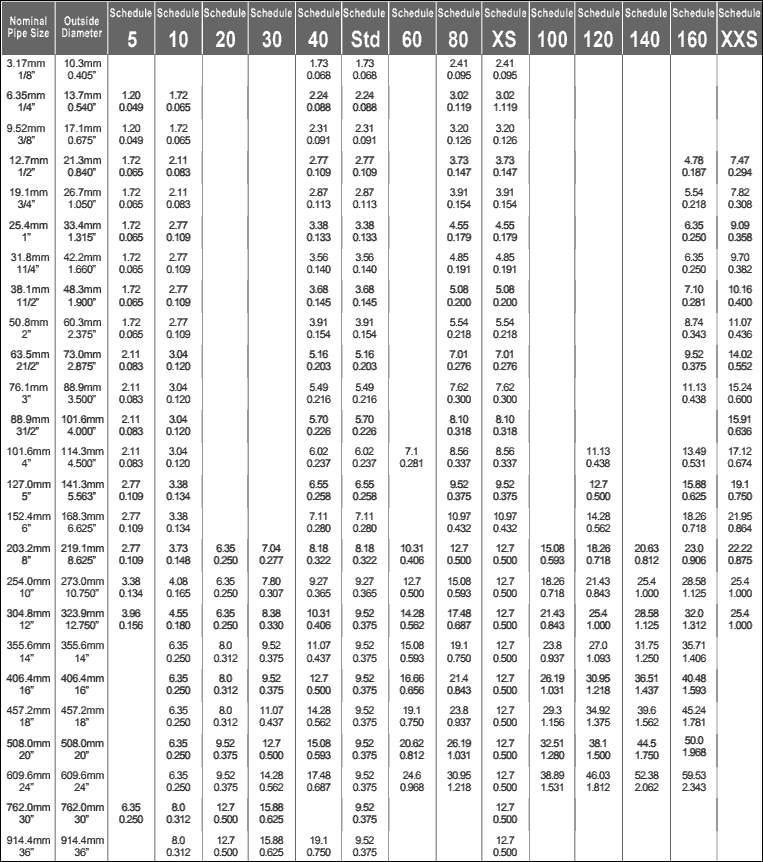

UNIT WEIGHT OF MS PIPE SCHEDULE 40
