Pipe Dn Sizes The size of pipes fittings flanges and valves are often given in inches as NPS Nominal Pipe Size or in metric units as DN Diametre Nominal
What is DN Diameter Nominal Pipe Size DN or Diameter Nominal is an International designation SI or Matric Designator and a European NPS equivalent to show pipe sizes DN is the nominal true diameter in industrial fittings and piping systems and is an important size basis for pipe fittings DN is often used in American standards to indicate the
Pipe Dn Sizes
Pipe Dn Sizes
https://www.vibtech.co.uk/wp-content/uploads/2021/03/nominal-pipe-size-chart-In-mm-2048x1335.png
Tabella Dn Pipe
https://hardhatengineer.com/wp-content/uploads/2017/11/nominal-pipe-size-chart-In-mm-1536x1001.png
PVC Pipe Sizes A Guide To Sizes And Dimensions 60 OFF
https://cdn.thepipingmart.com/wp-content/uploads/2022/11/What-are-the-different-pipe-size-notation-scaled.jpg
For a full range of industrial tools available visit enerpac For in situ pipe machining tools visitmiragemachines The pipe sizes are designated by DN followed by a number to indicate standard pipe size For example DN50 indicates a 2 NPS pipe Similarly DN80 indicates a 3 NPS pipe The pipe

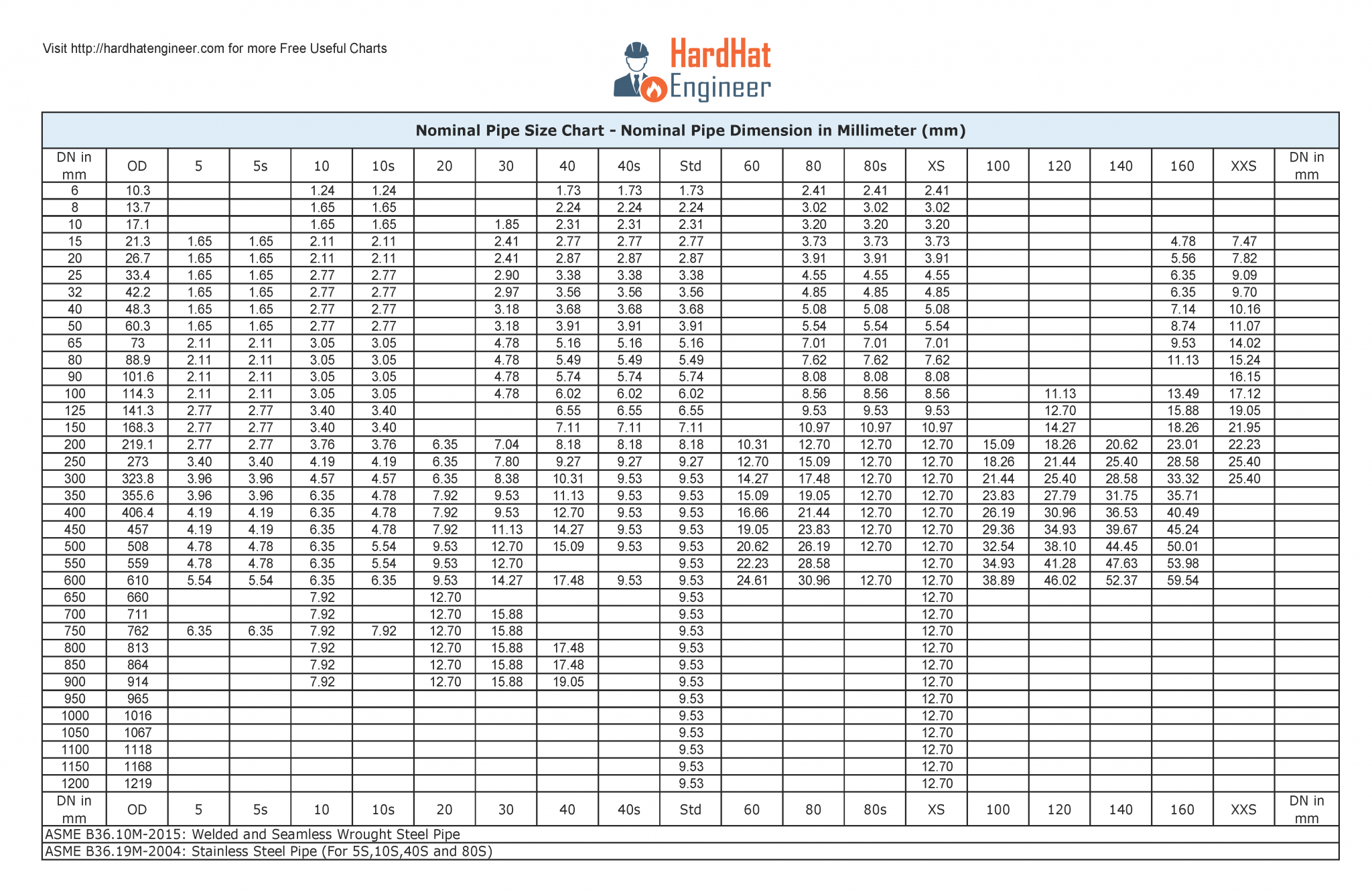

Carbon steel pipe nominal dimensions based on ASTM A106M and ASME B36 10M 2004 For other wall thicknesses and for sizes above DN 750 up to DN 2000 consult ASME B36 10M Find out how pipe sizes are specified the calculation of pipe internal diameter and the common standard pipe sizes
