What Is Lifeline In Sequence Diagram In UML diagrams such as sequence or communication diagrams lifelines represent the objects that participate in an interaction For example in a banking scenario lifelines can represent objects such as a bank system or customer Each instance in an
The following nodes and edges are typically drawn in a UML sequence diagram lifeline execution specification message combined fragment interaction use state invariant continuation destruction occurrence Major elements of the sequence diagram are shown on the picture below Lifeline with name data of class Stock A Lifeline is shown using a symbol that consists of a rectangle forming its head followed by a vertical line which may be dashed that represents the lifetime of the participant
What Is Lifeline In Sequence Diagram
What Is Lifeline In Sequence Diagram
https://i.pinimg.com/originals/f8/6c/d5/f86cd530f858e2cb0cb2c56e1dd49dad.png

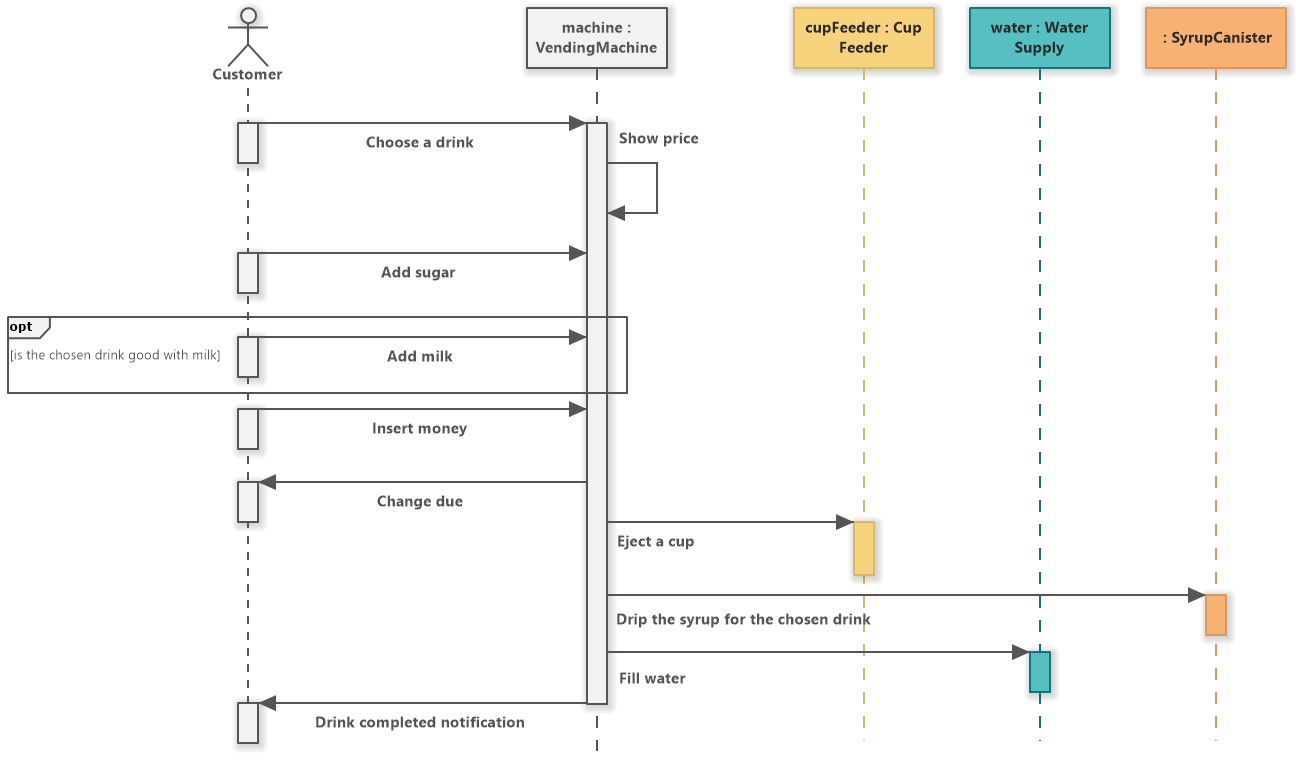

Vending Machine UML Sequence Diagram Software Ideas Modeler
https://www.softwareideas.net/i/DirectImage/1764/Vending-Machine--UML-Sequence-Diagram-
CS 4970 10 documentation Slide Set
http://www.uml-diagrams.org/sequence-diagrams/sequence-diagram-overview.png
A lifeline represents an individual participant in a sequence diagram A lifeline will usually have a rectangle containing its object name If its name is self that indicates that the lifeline represents the classifier which owns the sequence diagram When drawing a sequence diagram lifeline notation elements are placed across the top of the diagram Lifelines represent either roles or object instances that participate in the sequence being modeled
It is for displaying one interaction of the object with other object or itself Interaction needs to be started within that rectangle in the top side and end near bottom side There is no need to start or end interaction in the top most or bottom most edges in the rectangle Some also call these as Execution Specifications as well There are two main modeling elements on a sequence diagram lifelines and messages Lifelines are the representation of the blocks or part properties they represent A Lifeline is the representation of a property or class which messages are interacting between An Activation Bar is the period of which an object is performing an action
More picture related to What Is Lifeline In Sequence Diagram
Blog Create A Sequence Diagram
https://www.drawio.com/assets/img/blog/uml-lifeline-examples.png
Tabel Sequence Diagram
https://cdn-images.visual-paradigm.com/handbooks/software-design-handbook/sequence-diagram/08-sequence-diagram-example.png
Sequence Diagram Online Tool Uml 2 5 Jzalotto
https://i.stack.imgur.com/LJL29.png
Lifelines in UML diagrams In UML diagrams such as sequence or communication diagrams lifelines represent the objects that participate in an interaction For example in a banking scenario lifelines can represent objects such as a bank system or customer Each instance in an interaction is represented by a lifeline Lifelines are vertical dotted lines that indicate the object s activity over time Lifeline is a named element that represents an individual participant in the connection While parts and structural properties may have multiplicity lifelines represent only one interconnected entity
