Vent Stack Size Stack vents and vent stacks connected into a common vent header at the top of the stacks and extending to the open air at one point shall be sized in accordance with the requirements of
Using these charts there are four steps to accurately size uniform acceptable and easily built drainage and venting systems in buildings Add up the total number of drainage fixture units dfu for each sanitary branch Branch vents must rise to a height of at least 42 in above the floor before beginning their horizontal run to the vent stack This measurement adds a safety margin of 6 in above the height of the highest fixture such as a sink set at 36
Vent Stack Size
Vent Stack Size
http://cdn.shopify.com/s/files/1/0533/9129/4645/products/vent-stack-vs15ta-485689_1200x1200.jpg?v=1614670978
DIAGRAM Diagram Of A Stack Vent MYDIAGRAM ONLINE
https://www.diychatroom.com/attachments/f7/370306d1492121017t-vent-stack-sizing-vent-stack2.jpg
DWV Vent Sizing Question Plumbing DIY Home Improvement DIYChatroom
https://www.diychatroom.com/attachments/f7/553073d1552210502-dwv-vent-sizing-question-screen-shot-2019-03-08-1.19.53-pm.png
The centerpiece of a DWV system is the main stack usually a pipe 3 or 4 inches in diameter that runs vertically in the wall and up through the roof Secondary stacks perhaps 2 or 3 inches in diameter serve as branches of Sizing Vent Stacks Vent stacks are sized by the number of fixture units that are being served by the soil or waste stack and also by the length of the vent stack
15 rowsA stack vent shall be provided for the waste stack The size of the stack vent shall be not less than the size of the waste stack Offsets shall In this article Lynn Underwood a code official in Norfolk Virginia answers the question from a reader Can I hook up my kitchen vent to another 3 in vent in the attic The answer includes an explanation of sanitary plumbing
More picture related to Vent Stack Size
Plumbing Fitting Components For Deltacad FasXX
http://enterprisebp.co.uk/wp-content/uploads/2015/09/Soil-Diagram.jpg
Plumbing Vent Diagram Understanding The Basics Architecture Adrenaline
https://www.architectureadrenaline.com/wp-content/uploads/2023/04/Plumbing-Vent-Diagram-Understanding-the-Basics_28674.jpg
Fine Beautiful Stack Vent Definition Bulthaup Stainless Steel Kitchen
https://3.bp.blogspot.com/-Y-N6yR5KfgU/W_YkErFfr6I/AAAAAAAAATo/oBw0WqXAfOkB75ozJeC0TfXFrusdVkVygCLcBGAs/s1600/Stack%2BVent%2Bvs%2BVent%2BStack.jpg
1 A vent stack or stack vent shall be sized in accordance with Table 7 5 8 4 based on a the length of the vent stack or stack vent and b the total hydraulic load that is drained to the The size of the vent stack is determined by the number and type of plumbing fixtures it serves A larger vent stack may be required for a building with a large number of fixtures or for fixtures
The stack vent is the portion of a vent stack that extends above the highest drain point and through the house to the outside through the roof wall or soffit The necessity of at Since most building drains have a diameter of 3 inches the vent stack should be at least 1 5 inches in diameter This size requirement ensures sufficient airflow and proper
DWV Vent Sizing Question Plumbing DIY Home Improvement DIYChatroom
https://www.diychatroom.com/attachments/f7/553073d1552210502t-dwv-vent-sizing-question-screen-shot-2019-03-08-1.19.53-pm.png
Vents

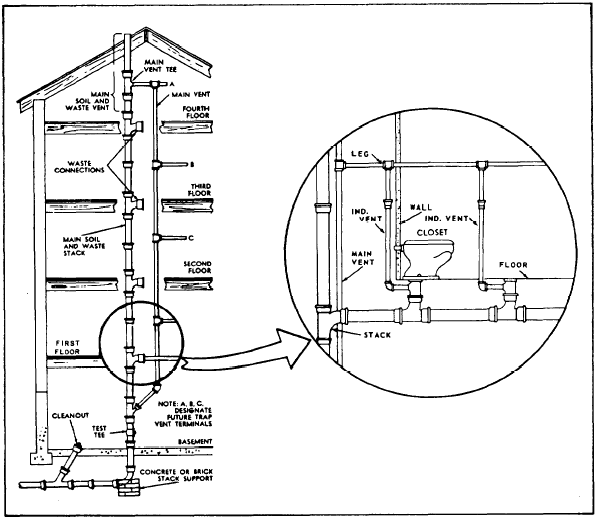

http://www.tpub.com/engbas/8.htm69.gif
